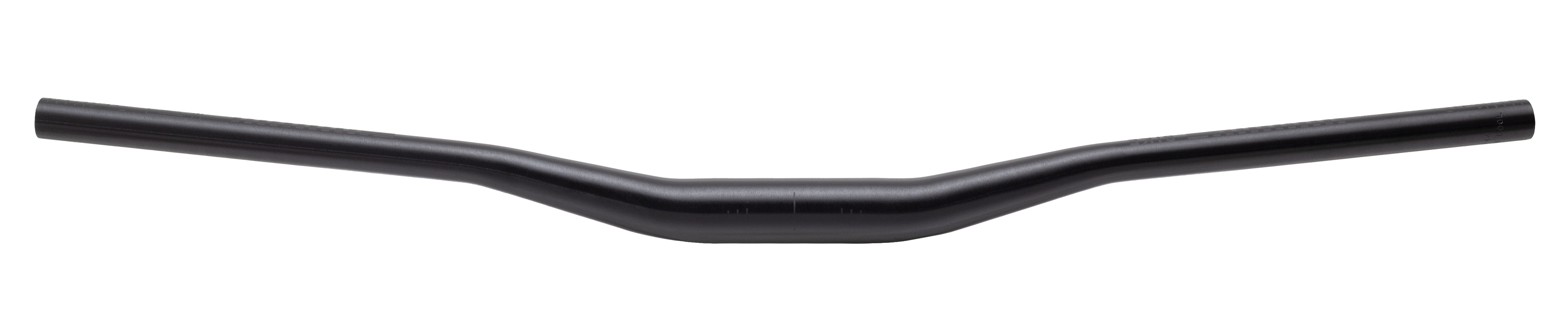

Barmate Aluminium
Barmate Aluminium
Product number:
BARMAL-50-BK
The focus for Barmate Aluminium was clearly set for compatibility and stability.
Even the widest direct mount stems known to us pose no problem for the 85mm clamping width of the Barmate Aluminium.
Thanks to the mindful selection of high-quality materials and heat treatment, the Barmate Aluminium achieves highest safety standards (EFBE TRI-TEST® MTB-Gravity) by German test institute EFBE, while weighing in at an impressive 325g only.
Find out more about EFBE TRI-TEST® MTB-Gravity here.
Developed for demanding riders who are looking for a strong aluminium handlebar for the toughest trails in the world.
Of course, all of our handlebars are also compatible with our BikeYoke Barkeeper.
There are two finishes to choose from.
Black on black:
The finished butted and shaped handlebar is first brushed by hand. Logos and markings are then laser-engraved on the blank surface. Only then is the entire handlebar fully anodized in black color. This creates an elegant and subtle finish.
Silver / black:
The finished butted and shaped handlebars are first brushed by hand. The handlebars are then anodised silver. The handlebars are then covered on one side and anodized black on the other. Only then are logos and laser etchings are applied . The result is an unmistakable eye-catching silver/black finish.
Of course, all of our handlebars are compatible with our BikeYoke Barkeeper stem.
Material:
Al-7050 alloy with multi-stage heat treatment
| Stem Clamping Width: | 35 mm |
|---|---|
| Rise: | 25mm, 40mm |
| Width: | 800 mm |
| Stack: | 50 mm, 65 mm |
| Reach: | -35 mm |
| Backsweep: | 9° |
| Upsweep: | 6° |
| Weight: | ca. 325g |
STACK & REACH
Unlike most others, we are not referring to "rise" when it comes to defining handlebar height, but we're implementing "stack", as a much more meaningful measure.
Additonally and unprecedented, we are also specifying "reach", which identifies as the effective setback of your handlebar, shortening the effective stem length.
Stack and Reach both refer to the neutral/construction orientation of the handlebar. The aim of stack an reach is to make handlebars directly comparable between brands, which currently is not possible.
Learn more about our handlebar geometry here.
BACK- & UPSWEEP
The Barmate Aluminum has passed the Tri-Test of the German testing institute EFBE, meaning it can be used without restriction on enduro and downhill bikes.
With a clamping range of 85mm, it is suitable for even the widest direct-mount stems.
